Description

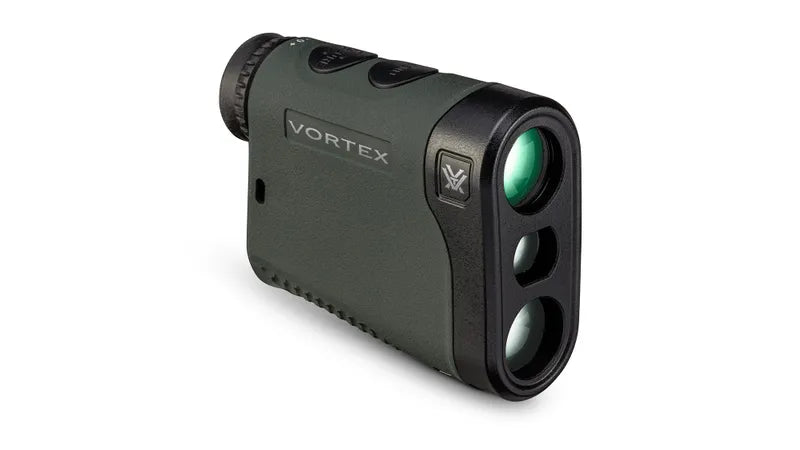

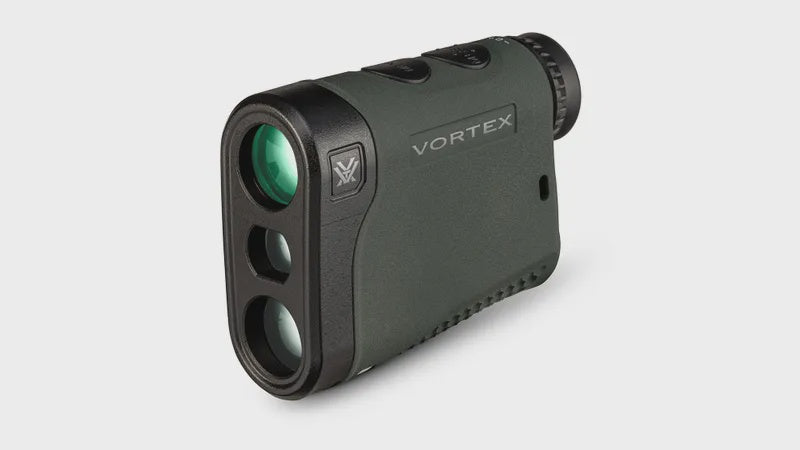

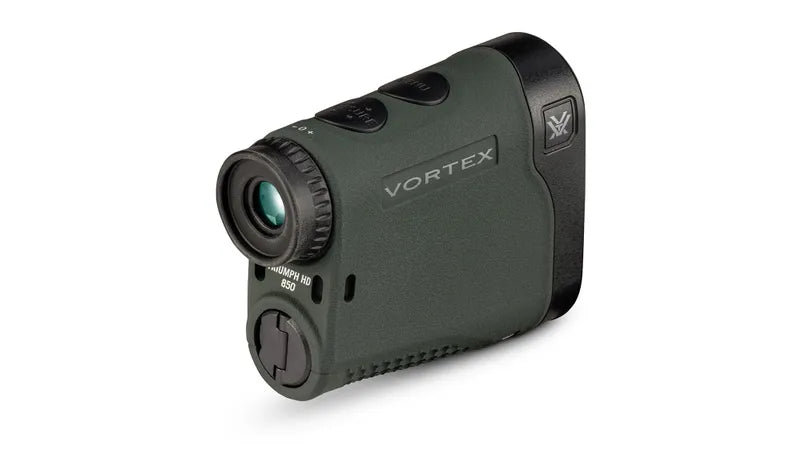

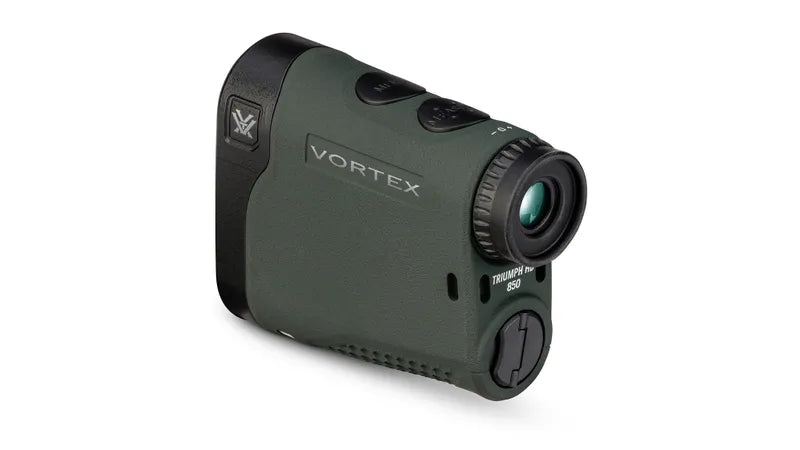

Vortex - Triumph™ HD 850 Laser Rangefinder
Ranging made simple for the way you hunt. The Triumph™ HD 850 Laser Rangefinder delivers fast, accurate readings for hair-splitting shots that lead to short blood trails. With intuitive range and target modes preferred by rifle and bowhunters, it's ready for planning a stalk or taking the shot in thick woods or open terrain. Compact and lightweight, it's made for deer hunters who need gear they can trust to deliver season after season.
| Magnification | 5x |
|---|---|
| Objective Lens Diameter | 21 mm |
| Eye Relief | 13mm |
| Range Reflective (yards) | Up to 850 yds. |
| Range Tree (yards) | Up to 500 yds. |
| Range Deer (yards) | Up to 350 yds. |
| Min Range | 6 yds. |
| Accuracy | .5 yds @ 100 yds. |
| Length | 3.8" |
| Height | 3.1" |
| Width | 1.4" |
| Weight | 4.6 oz. |
| Max Angle Reading | ± 89° |
Feature Tech

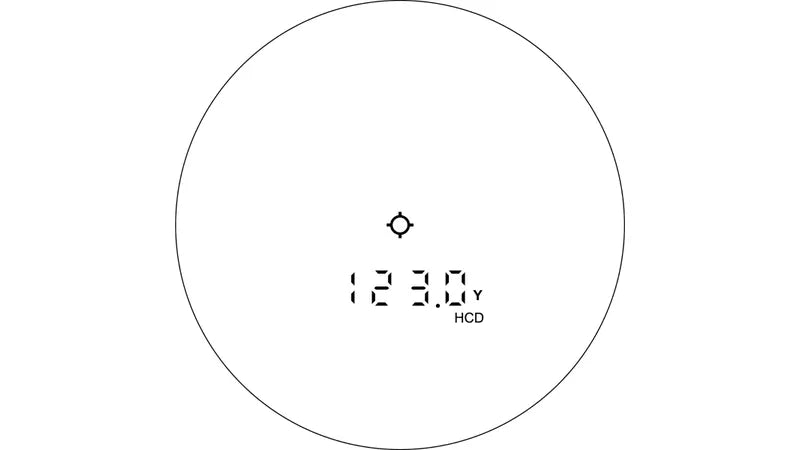

Horizontal Component Distance (HCD): Displays the slope angle compensated distance to the target.
Line of Sight (LOS): Displays the actual line of sight range.
Scan Feature: Displays continuous distance readings while panning across a landscape.
Normal Mode: The standard mode providing the target's range with the strongest range result. Recommended for most situations.
First Mode: Displays the closest distance when ranging. Ideal for ranging a smaller target in front of other larger or more reflective objects.
Last Mode: Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc.
Horizontal Component Distance (HCD): Displays the slope angle compensated distance to the target.
Line of Sight (LOS): Displays the actual line of sight range.
Scan Feature: Displays continuous distance readings while panning across a landscape.
Normal Mode: The standard mode providing the target's range with the strongest range result. Recommended for most situations.
First Mode: Displays the closest distance when ranging. Ideal for ranging a smaller target in front of other larger or more reflective objects.
Last Mode: Displays the farthest distance when ranging. Ideal for ranging a specific target behind a group of objects like brush, trees, rocks, etc.
